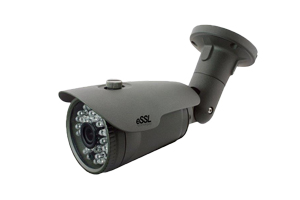

CCTV: HD-EB8

Traditional analog system has drawback in transmission range and distance over which video is transmitted. Demerits in the system gave rise to AHD series of analog cameras. The term AHD refers to “Analog High Definition “which enables migration from analog to Analog high definition.



AHD Solutions supports video transmission over traditional 75-3Coaxial cable up to 500 meters. AHD series carry forwards the some functionalities of analog system which in turn makes it a future proof solution.

Detailed Introduction

  • Product Overview
  • Parameters

  • Power Sytem: PAL/NTSC
  • Sensor: SONY
  • Active Pixel: 1280 x 720
  • SYNC: Internal
  • Resolution: 720P
  • Video Out: AHD/CVBS, PAL/NTSC
  • Minimum Illumination: 0.01 Lux (F1.2)
  • Gama adjust: 0.45
  • Lens Mode: DC/Manual
  • Electric Shutter: 1/50s-1/50000s ; 1/60s-1/50000s
  • S/N Ratio: 50dB (min)(AGC closed)
  • 3D-NR: OFF/LOW/MID/HIGH
  • 2D-NR: OFF/LOW/MID/HIGH
  • White Balance: ATW/AWC-SET/Indoor/
  • Outdoor/Manual
  • AGC: Level 0-15
  • BLC: BLC/HCL/OFF
  • D-WDR: OFF/ON(Level 0-8)/Auto



    Optional Features:
  • Lens: 3.6 mm (6mm optional)
  • Sens-UP: X2-X30
  • Mirror: OFF/Mirror/V-Flip/Rotate
  • Motion Detection: 4 areas optional
  • Day/Night: Auto, Color, B/W, Ext
  • Privacy Zone: 4 areas optional
  • Defoq: OFF/AUTO
  • Power Input: DC12V ± 1V
  • Power Dissipation: 70mA
  • Operating Temperature: -10°C~ +60°C
  • Operating Humidity: Less than 85% RH
  • Dimension (LxWxH): 38 x 38 x 1.6
