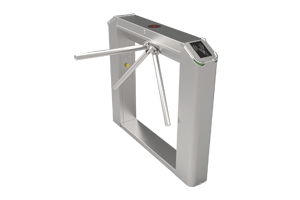

Turnstile : TS 2100 - Equipped with inbuilt controller

Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people. The TS2100 series offer a slim, two-legged casework made of stainless steel, ideal for sites where large flows of people and space are issues. On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.


Detailed Introduction

  • Product Overview
  • Parameters

  • Power Supply: AC110~220V ±10%, 50Hz
  • Working Environment: Indoor/outdoor
  • Operating Temperature: -28°C~ 60°C
  • Rated Power: 120W
  • Relative Humidity: 5% to 80%
  • Pass Speed: 48 people/minute( Single direction)
  • Noise: ≤32 db
  • Waterproof Class: IP54
  • Tripod Arms Length: 50cm
  • Maximum Bearing (Arms): 80Kg
  • Dimension(LxWxH): 1200 x 186 x 980mm



    Features:
  • Robust Arms
  • Stainless steel Motor mechanism
  • All the housing materials use international
  • standards SUS304
  • Stainless steel, nice shape, rustproof and durable
  • The system adopts standard electrical interfaces
  • that could be integrated with variety of devices
